The 48RE transmission is the weakest point on a Dodge Cummins truck. Not only do they fail on trucks with minor upgrades, but even trucks in stock form have been known to be too powerful. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes to work, or high-horsepower applications.
Thats why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain. With the many shortcomings of the 48RE, none are more important than the clutch packs. This is what takes the power load and transmits it to the rear wheels. We increase the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs which allow much higher torque capacity in each gear.
Clutch material is also essential which is why we use Borg Warner and Raybestos clutches which has both high torque strength as well as longevity and reliability. Another important aspect is the hard parts on the transmission. The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor, allowing more precision application of the band.
Along with the factory plastic accumulator piston is replaced with a billet unit as well. The apply lever is a 1:5.0 ratio apply arm, which applies the borg warner red lining band. This band features a performance friction material capable of holding higher power levels.
The valve body receives extensive modifications as well. We give the valve body the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machine the TV valve passage and install our proprietary TV valve sleeve, and increase line pressure.
The towing version will deliver smooth, quick, crisp shifts that enhance the drivability and operation of your transmission on the street and attached to a trailer. This is the valve body of choice for a street driven all-purpose truck
It is a very aggressive valve body and a minimum of billet input shaft and flex plate are recommended.

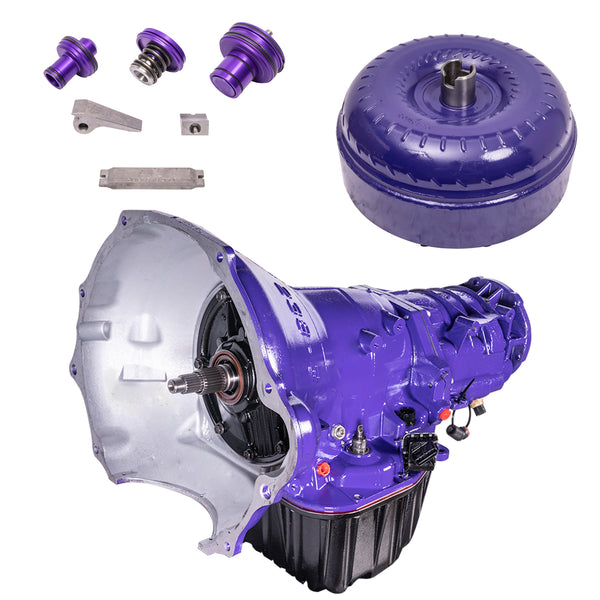

Includes:
ATS Built 48-RE Auto Trans
ATS 5 Star Viskus Clutch Drive Torque Converter
ATS Extra Deep Transmission Pan
Features:
New performance forward clutch pack and steels with 1 added friction
New performance direct clutch pack and steels with 1 added friction
New performance overdrive brake clutch pack and steels with 1 added friction
New performance overdrive clutch pack and steels
Low/reverse band replaced with Borg Warner Red Lining performance band
Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
Machined TV valve sleeve (prevents sticking TV valve)
Ability to achieve 1st and 2nd gear lockup
Ability to circulate fluid to the torque converter in park/reverse/neutral
Increase line pressure
Improve shift quality and firmness
Gasket and seal overhaul kit
Bearings and bushing
Engine Manufacturer: Cummins
Make: Dodge Diesel
Models: 2500/3500
Fuel Type: Diesel
Transmission Model: 48RE
Transmission Type: Automatic
Sold As: Kit
ATS LIMITED PRODUCT WARRANTY
ATS Transmission packages carry a ONE to FIVE YEAR Warranty. There are several exceptions, so refer to the Warranty’s specific terms and conditions . All labor, shipping, or any other charges associated with the product and the product’s failure are not covered under Warranty. Labor and/or shipping charges will not be refunded under any circumstance. After the one-year anniversary date of the original purchase, there is a limited parts replacement Warranty only. Transmissions that are purchased separately outside of a transmission package / stage and are installed without an ATS torque converter carry a 1 year parts only warranty and there is no labor or shipping allowance for transmission only purchases.
In the event of a product failure, the consumer must return the defective product to ATS for inspection before a replacement is sent to the consumer. After ATS inspects the product and completes the failure analysis, the inspection officer at ATS will provide written documentation stating the condition of the product and determine, to the best of his or her ability, what caused the malfunction or complaint. Based on the findings of the inspection report, ATS will determine whether there is a valid Warranty claim. Should a consumer require immediate service, and chooses not to wait for their product to be returned to ATS for inspection, service, and potential repair or replacement, the consumer can purchase a replacement product from ATS. The consumer must pay the full current MSRP, the applicable core charge, and shipping to and from ATS’ shop. When the defective product arrives, ATS will refund the core charge and inspect the product. During inspection, ATS will assess the product for warrantable damage. If the original product has indeed failed under the terms of the original Warranty, ATS will refund the full purchase price for the replacement product only. If the product has failed due to any issue not covered under the original Warranty, ATS will assess charges to the consumer based on any parts necessary to return the product to nominal ATS standards. ATS will deduct the total cost of required parts from the replacement product’s purchase price, and the consumer will be refunded the difference (if any) between the purchase price paid for the replacement product and the cost of parts.
If the consumer can wait for their product to be returned to ATS for inspection, service, and potential repair or replacement, the consumer pays shipping to and from ATS’ shop. When the defective product arrives in Colorado, ATS will inspect the product. ATS will then assess the product for warrantable damage. If the product has failed under the terms of the original Warranty contract, ATS will repair or replace the product – at ATS’s discretion. If the product has failed due to any issue not covered under the original Warranty, ATS will assess charges to the consumer based on any parts necessary to return the product to nominal ATS standards. ATS will bill the consumer for the total cost of parts required for repair of the product, and shipping to and from Colorado, prior to the repaired/replaced product being sent to the consumer.
ATS Manual Transmissions Warranty
This section incorporates Section 2, entitled “In the Event of a Failure.” ATS manual transmissions carry a 1-year/12,000 mile Warranty. ATS will not pay for any fluids replaced in the event of a transmission failure. There is no labor or freight warranty coverage on standard transmissions. Manual transmission shafts and gears are not covered by this Warranty on any transmission due to the capability of certain situations to cause stress-loads beyond the structural ability of the shaft or gear.
