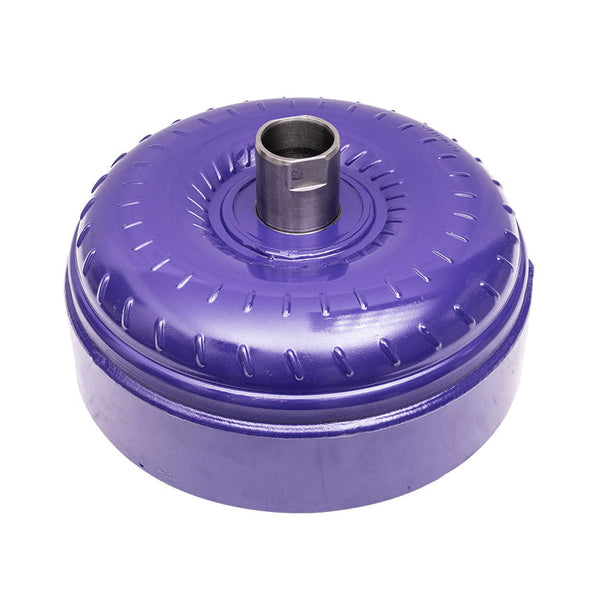

ATS TripleLok Performance Torque Converter Factory Stall Speed Allison LCT1000 2001-2010 GM 6.6L Duramax

$1,268.75

The TripleLok Torque Converter for 2001 to 2010 Allison is the only Diesel torque converter on the market that has been awarded two patents from the United States patent office....

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Sku: 302-930-4248

Vendor: ATS Diesel Performance

Choose Your Product Options:

Choose Region *

Painting Format *

Image Resolution *

Frame

Portrait Canvas Size (With Frame) *

Add HQ Digital Image

Add 8K x 8K Digital Image (FREE) (+$0.00)

Add 12K x 12K Digital Image (+$15.00)

Add 16K x 16K Digital Image (+$25.00)

Mint as NFT

Description
ATS Warranty

The TripleLok Torque Converter for 2001 to 2010 Allison is the only Diesel torque converter on the market that has been awarded two patents from the United States patent office. There is no other torque converter offered anywhere that can make this claim. The 30 square drive tabs that are precision CNC cut into the billet cover is only one of the many patented aspect of the TripleLok converter.

ATS engineered a unique two piece design that not only allows us to cut precision radial flank drive lugs into the cover but also utilizes a plasma weld ensuring an unmatched quality standard. The patented radial flank drive tabs virtually eliminate the wear that is common with all other round tab multi-disc torque converters. This is the number one reason ATS can offer a 5 year warranty on all our torque converters.

There are a few things that I would like to tell you about this torque converter. In 1999 the first Diesel multiple disc converter was developed utilizing round tabs to connect the clutch plates to the cover. We soon realized this to be a problem, after several thousand miles the outer plate would start to hammer into the billet cover due to the engine piston pulsations. These pulsations are engine torsional loads that will destroy a converter and flex plate.

We soon invented and patented the Square tab design that you can see and only get from ATS today. The Radial Flank Square Tab is the back bone of the ATS TripleLok and FiveStar torque converter, all ATS multiple Disc converters are 100 percent square tab construction. The Billet cover provides a multitude of benefits, having the thick steel cover provides a base that will not flex. This is very important when needing a flat surface for the Lock-up clutches to couple with, this is also very important during times when there are high pressures created inside the converter due to extended load times when the converter is in a vortex flow. This pressure will cause the converter to balloon and the thrust bearings to get out of alignment causing converter failure.

The triple clutch lock-up system is used to transfer torque from the engine to the transmission during high power applications when the converter is in lock-up. The triple clutch provides three times the torque capacity of a standard single disc converter and ensures there will be no slipping during hard accelerations or when pulling heavy loads. There are basically two areas of operation in a torque converter. The fluid coupling portion and the lock-up portion.

The fluid coupling section is the operation that takes place when you accelerate from a stop when the engine is spinning and the vehicle wheels are not moving or just starting to move. As you push on the accelerator pedal and the vehicle starts to move this is considered the torque converter stall speed. Once the stall speed is reached and the vehicle starts to move forward the converter is in what we refer to as the Vortex flow condition of the converter cycle. The Vortex flow cycle is one of the most important and overlooked segments of a converter.
Details:

TripleLock Torque Converter
Factory RPM Stall Speed
Cast Stator
Positive Impeller
Billet Cover with Patented square Flank Drive
Square Tab Construction (Not Round)
Triple Disc CNC Laser Cut Clutch Plates
Billet Piston with Patented flank drive tab design
Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)
Redesigned Spring Dampener supports increased extend torque loads
4340 Hardened turbine splines provide longevity due to engine torsional stress
Fully Welded Turbine and Impeller Vanes
CNC Stator with High Flow Windows Increase Oil Flow providing increase efficiency
Full Roller Bearing Construction Between High Load Areas
340 CNC cut Pump Drive Hub lock into Impeller Housing and Plasma welded for unsurpassed strength
Sold Individually

Fits:

2001-2010 GM 2500|3500 Truck w/6.6L Duramax Engine and Allison LCT-1000 Transmission

ATS LIMITED PRODUCT WARRANTY

ATS Transmission packages carry a ONE to FIVE YEAR Warranty. There are several exceptions, so refer to the Warranty’s specific terms and conditions . All labor, shipping, or any other charges associated with the product and the product’s failure are not covered under Warranty. Labor and/or shipping charges will not be refunded under any circumstance. After the one-year anniversary date of the original purchase, there is a limited parts replacement Warranty only. Transmissions that are purchased separately outside of a transmission package / stage and are installed without an ATS torque converter carry a 1 year parts only warranty and there is no labor or shipping allowance for transmission only purchases.

In the event of a product failure, the consumer must return the defective product to ATS for inspection before a replacement is sent to the consumer. After ATS inspects the product and completes the failure analysis, the inspection officer at ATS will provide written documentation stating the condition of the product and determine, to the best of his or her ability, what caused the malfunction or complaint. Based on the findings of the inspection report, ATS will determine whether there is a valid Warranty claim. Should a consumer require immediate service, and chooses not to wait for their product to be returned to ATS for inspection, service, and potential repair or replacement, the consumer can purchase a replacement product from ATS. The consumer must pay the full current MSRP, the applicable core charge, and shipping to and from ATS’ shop. When the defective product arrives, ATS will refund the core charge and inspect the product. During inspection, ATS will assess the product for warrantable damage. If the original product has indeed failed under the terms of the original Warranty, ATS will refund the full purchase price for the replacement product only. If the product has failed due to any issue not covered under the original Warranty, ATS will assess charges to the consumer based on any parts necessary to return the product to nominal ATS standards. ATS will deduct the total cost of required parts from the replacement product’s purchase price, and the consumer will be refunded the difference (if any) between the purchase price paid for the replacement product and the cost of parts.

If the consumer can wait for their product to be returned to ATS for inspection, service, and potential repair or replacement, the consumer pays shipping to and from ATS’ shop. When the defective product arrives in Colorado, ATS will inspect the product. ATS will then assess the product for warrantable damage. If the product has failed under the terms of the original Warranty contract, ATS will repair or replace the product – at ATS’s discretion. If the product has failed due to any issue not covered under the original Warranty, ATS will assess charges to the consumer based on any parts necessary to return the product to nominal ATS standards. ATS will bill the consumer for the total cost of parts required for repair of the product, and shipping to and from Colorado, prior to the repaired/replaced product being sent to the consumer.

ATS Manual Transmissions Warranty

This section incorporates Section 2, entitled “In the Event of a Failure.” ATS manual transmissions carry a 1-year/12,000 mile Warranty. ATS will not pay for any fluids replaced in the event of a transmission failure. There is no labor or freight warranty coverage on standard transmissions. Manual transmission shafts and gears are not covered by this Warranty on any transmission due to the capability of certain situations to cause stress-loads beyond the structural ability of the shaft or gear.
